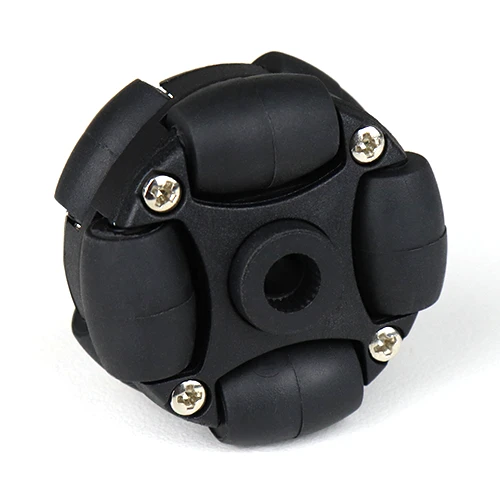

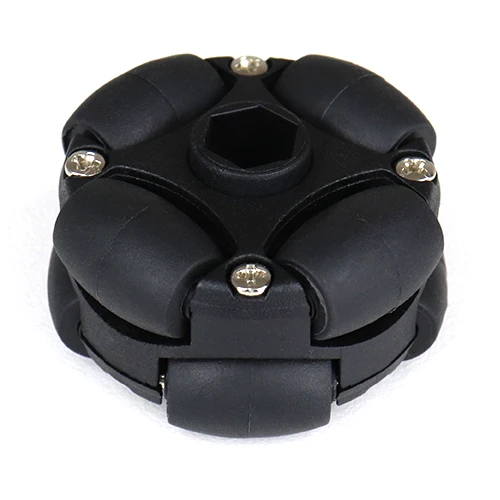

The 1.5Inch 38mm 90º Plastic Omni Wheel is the smallest omnidirectional wheel in all of Nexus omni wheels. It is unique as they are able to roll freely in two directions. And this 38mm omni wheel has 8 PU rollers. Its rollers are more durable, robust and flexible to provide the wheel 360-degree movement easily. This 38mm omni wheel applies to the small robot cars, robot platforms, small toys.
Selected high-quality plastic, cut off by laser, welding, stamping, thread and other processing. All-wheel-resistant plastic construction to impact, corrosion resistance, heat resistance, non-toxic tasteless, smooth surface appearance, lightweight low density. So truly omnidirectional wheel lateral movement, flexibility smooth, full-motion performance to achieve perfect wheel. According to user needs, to meet specific load and design.
Applications:
Based on omnidirectional wheel technology for service robots, trolleys, transfer conveyors, luggage, etc., the wheels will provide the perfect all-around performance, can replace or integrate the traditional wheels.
This wheel is also compatible with MG995 Servo Motor.
| Model No.: | EM-38 |
|---|---|
| Material: | Plastic |
| Diameter (mm): | 38 |
| Total Body Width (mm) | 23.4 |
| Load Capacity(Kg/Wheel) | 2 |
| Axial OD (mm) | 4 |
| No. of Plates | 1 |
| No. of Rollers per Wheel | 8 |
| Roller Diameter (mm) | 10 |
| Roller Material | TPR |
| Roller Width (mm) | 11 |
| Weight (g): | 24 |
| Color: | Black |
| Roller Type | Bush |
| Shipping Weight | 0.027 kg |
| Shipping Dimensions | 8 × 6 × 4 cm |
1 x 1.5Inch 38mm 90º Plastic Omni Wheel

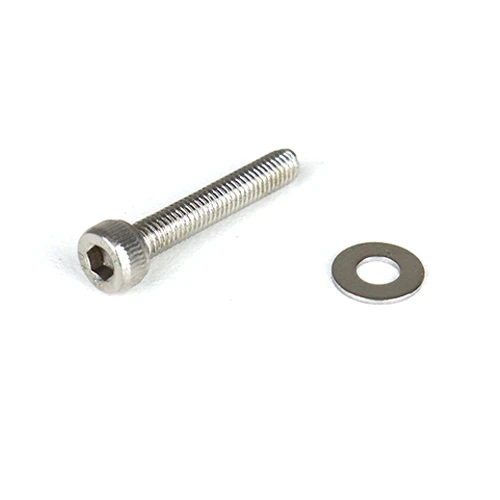

1 x M3*20mm Bolt with washer
Note: 3 mm Brass Coupling is not Included in Package you have to buy it separately
