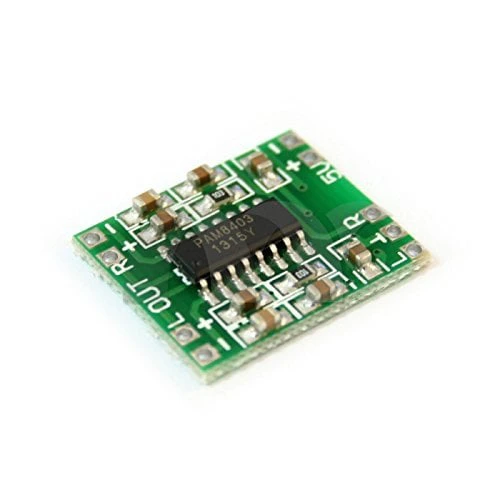

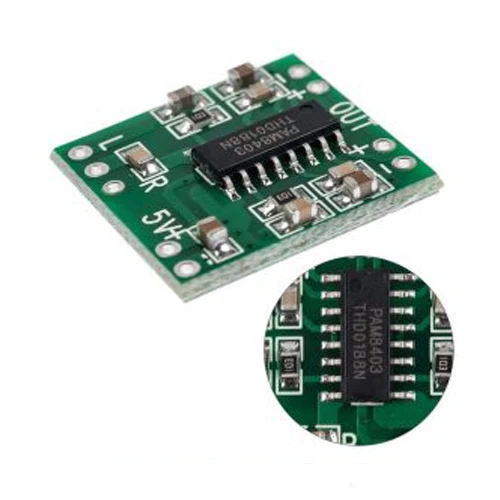

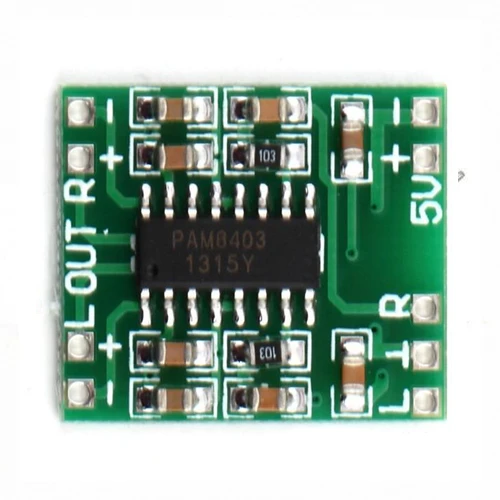

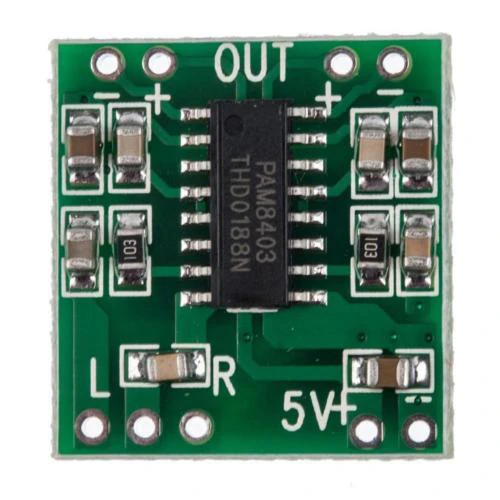

The PAM8403 5V Two-channel Stereo is a 3W+3W, class-D audio amplifier. Allowing it to achieve high-quality sound reproduction. The new filterless architecture allows the device to drive the speaker directly, requiring no low-pass output filters, thus saving system cost and PCB area. With the same numbers of external components, the efficiency of the PAM8403 is much better than that of Class-AB cousins. It can extend the battery life, which makes it well-suited for portable applications.
Specifications:
| Operating Voltage (VDC) | 2.5 ~ 5.5 |
|---|---|
| Max Gain | 24 dB. |
| Current Handle Capacity (A) | 0.08 |
| Efficiency | 87 %. |
| Amplifier IC | PAM 8403. |

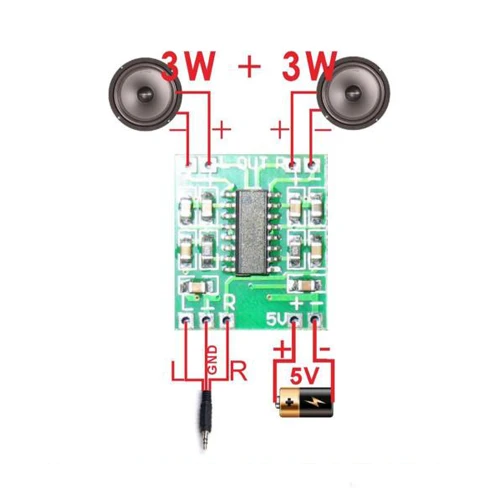

| Load | Can direct drive 4 or 8 ohm small speakers. |
| Dimensions (L x W x H) mm | 21 x 18 x 3 |
| Weight (g): | 5 |
| S/N Ratio (dB) | 80 |
| Power supply Rejection ratio | -58 dB. |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 3 × 2 × 1 cm |
1 x PAM8403 5V Two-channel Stereo Mini Class-D Audio Amplifier.
