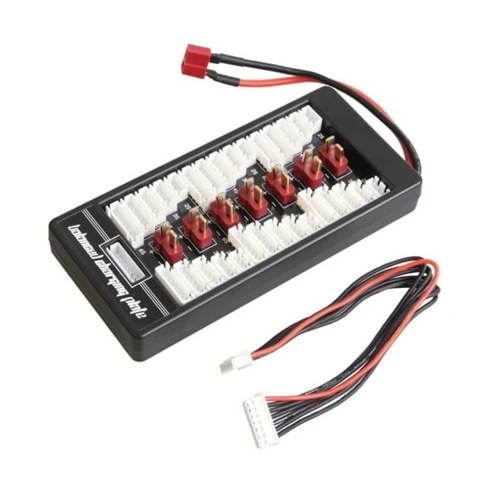

With a Parallel charging Board for 6 packs 2~6S (T-Male) now you can charge SIX (2~6S) lipo packs with same capacity & cell count simultaneously via this parallel charging board. That means you can charge 6 3S 2200mAh or more at the same time with a standard charger!
It is made for simultaneously charging multiple lithium batteries(including LiPo, LiFe, and Li-ion types) in parallel. To avoid the trouble of replacing batteries repeatedly.

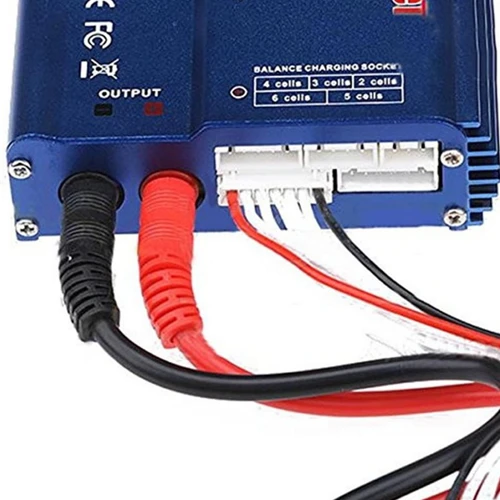

With Built-in short circuit protection, it protects your batteries from short circuits and it is very convenient to charge and balance up to six lithium batteries at the same time when used with a balance charger it means it protects your every cell from overcharging. Also, the charging time is significantly reduced since all batteries are balanced at the same time instead of balancing batteries one by one.
We also have a Parallel charging Board for 6 packs 2~6S with XT60 Connector male to connect batteries. Click Here to see.
| Charge Cell | 2S-6S |
|---|---|
| Connector Type | T-Connector/JST-XH |
| Operating Voltage (VDC) | 0 ~ 22.2 |
| Max Current (A) | 30 |
| Battery | 6 packs (same capacity & cell count) |
| Balance Output Cable | 20AWG silicon cable |
| Main Output Cable | 12AWG high-quality silicon cable |
| Dimensions (L x W x H) mm | 145x68x29 |
| Weight (g): | 140 |
| Shipping Weight | 0.15 kg |
| Shipping Dimensions | 12 × 8 × 2 cm |
1 x Parallel Charging Board for 6 packs 2~6S (T-Male)
1 x Connecting Cable
