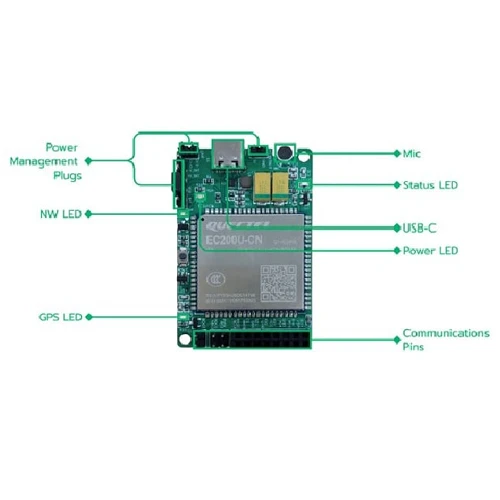

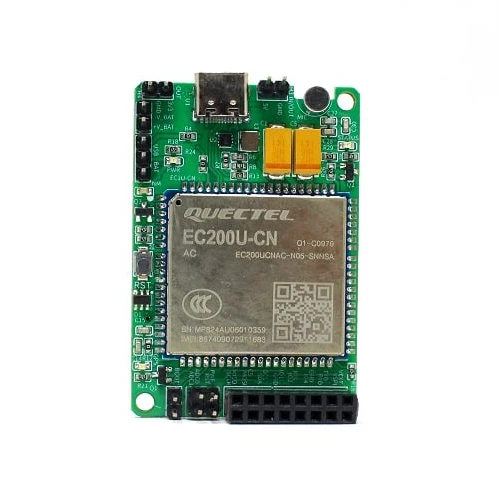

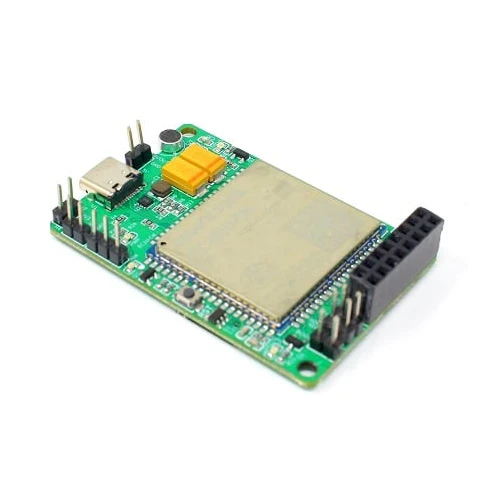

Quectel EC200U 4G/GSM Module without GPS for data logging applications.

(0) 0 Reviews 0 Orders 0 Wish listed

₹2,450.00

Quantity :

Total price :

(Tax : )

Overview
Reviews

The Quectel EC200U 4G module (without GNSS), represents a compact and versatile cellular communication solution tailored for applications requiring reliable 4G connectivity without the need for Global Navigation Satellite System (GNSS) capabilities.
Note: The product is incompatible with USB PD and USB-C to USB-C cables.

Features:

Quectel EC200U 4G Module
Compact Design
4G Connectivity
No GNSS Functionality
Versatile Applications
Embedded SIM (eSIM) Support
Low Power Consumption
Secure Communication
Remote Management

Specifications:

Power Supply-Supply Voltage (Vbat): 3.7V – 4V
USB-C: 3.7V – 5V
Typical Supply Voltage: 3.8V
LTE Features-Support CAT 1 FDD & TDD
Max 10 Mbps (DL) | Max 5 Mbps (UL)
GSM Features- Support GPRS multi-slot class 12
Coding Scheme: CS-1, CS-2, CS-3 & CS-4
Max 85.6 Kbps (DL) | Max 85.6 Kbps (UL)
Internet Protocol- Support:TCP/UDP/PPP/NTP/NITZ/FTP/HTTP/PING/CMUX/HT
TPS/ FTPS/SSL/FILE/MQTT/MMS protocols
SMS- Text and PDU mode
Point to point MO and MT
SMS cell broadcast
SIM Interface-Support nano SIM card
UART Interface-For AT communication & data Transmission
Baud rates up to 921600 bps; 115200 bps by Default
Support MAIN_RTS & MAIN_CTS Hw flow control
AT Commands-Compliant with 3 GPP TS 27.007, 27.005 and Quectel
enhanced AT command
Antenna Interfaces-Main antenna interface (ANT_MAIN)
GNSS antenna interface (ANT_GNSS)
Physical Dimension- 37.97mm x 55.7mm x 4mm
