TowerPro SG90 Servo Motor (180° Rotation)-Good Quality

(0) 0 Reviews 0 Orders 0 Wish listed
₹199.00
Quantity :
Total price :
  (Tax : )

TowerPro Servo Motors are optimum-quality and affordable cost servos.! They are suitable for a wide range of applications, including RC aircraft, automobiles, and robotics, Or just to have some fun with whatever crazy project you’re working on.

When you purchase TowerPro motors in India, they are almost usually NOT ORIGINAL, and these are no exception… These are NOT ORIGINAL Tower Pro Servos, either. However, they are dead cheap and Serve the purpose. We put them to the test and found them to be of good quality for the price.

You can buy E Max Servos OR Orange servos if you’re seeking high-quality servos.

Wire Description:
  • RED – Positive
  • Brown – Negative
  • Orange – Signal

We have imported this copy of original TowerPro SG90 9g Mini Servo from our trusted supplier. This good quality servo motor is in very close competition to the original TowerPro SG90 1.2kgCm 180-degree servo motor.

Main Difference between Good Quality SG90 and Standard Quality Sg90 is

PropertyGood Quality (SKU:- 43849)Standard Quality (SKU:- 5764)
CableThickThin
GearsNylonPolyPropelene Plastic
MotorHigh torqueSlightly Lower Torque




Features :

  1. High resolution
  2. Accurate positioning
  3. Fast control response
  4. Constant torque throughout the servo travel range
  5. Excellent holding power

Specifications:

Item Type:

TowerPro Servo Motor

Model Series:

SG Series

Rotation (Degree):

180

Torque Rating (kg-cm):

1.2 to 1.6

Model No.:

SG90

Operating Voltage (VDC)

3.0 ~ 7.2

Operating Speed @4.8V

0.10sec/60°

Stall Torque @ 4.8V (Kg-Cm)

1.2

Stall Torque @6.6V (Kg-Cm)

1.6

Operating Temperature (°C)

-30 to 60

Gear Type

Glass Fiber

Servo Plug Type

JR

Cable Length (cm):

25

Length (mm):

22.8

Width (mm):

12.6

Height (mm):

34.5

Weight (g):

9

Shipping Weight0.014 kg
Shipping Dimensions8 × 6 × 4 cm

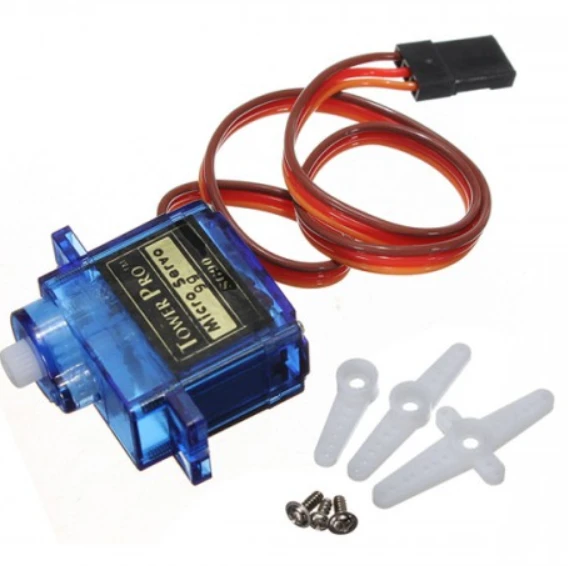

Package Includes :

1 x TowerPro SG90 9g Mini Servo Motor with Cable

1 x Set of Horns

  1. One Point
  2. Two Point
  3. Four Point

1 x Set of Screws
