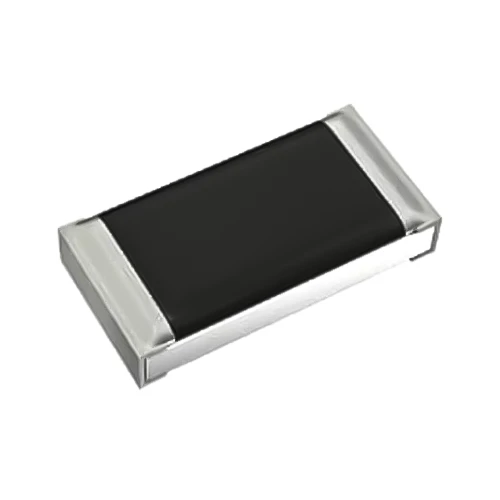

It is a 0.001 Ohm 3W Surface Mount Sense Resistor. This is, in general, a low-value, high-power resistor. Ideal for all types of current sensing and pulse applications including switching and linear power supplies, instruments, power
amplifiers, shunts, power inverters, and battery management.
Specifications:
Package Code | 2512 |
---|---|
Resistance (Ω) | 0.001 |
Tolerance (%): | 1 |
Max. Working Voltage (V) | 0.5 |
Temperature Co-efficient | ?50 ppm/?C |
Operating Temperature (°C) | -65 to 170 |
Mounting Type: | SMD/SMT |
Length (mm): | 7 |
Width (mm): | 4 |
Height (mm): | 1 |
Weight (g): | 0.1 (approx) (each) |
Shipping Weight | 0.005 kg |
Shipping Dimensions | 5 × 8 × 1 cm |
3 x 0.001 Ohm 3W Surface Mount Sense Resistor.
