HEF4047BT,653-NEXPERIA-Monostable / Astable Multivibrator, HEF4047, 50 ns, 2.4 m

(0) 0 Reviews 0 Orders 0 Wish listed

₹71.00

Quantity :

Total price :

(Tax : )

Overview
Reviews

HEF4047BT,653-NEXPERIA-Monostable / Astable Multivibrator, HEF4047, 50 ns, 2.4 mA, 4.5 V to 15.5 V, SOIC-14.The HEF4047BT is a gatable Monostable/Astable Multivibrator incorporating logic techniques to permit positive or negative edge-triggered monostable multivibrator action with retriggering and external counting options. Inputs include +TRIGGER, -TRIGGER, ASTABLE, ASTABLE, RETRIGGER and MR (master reset). Buffered outputs are O, O and oscillator output. In all modes of operation an external capacitor (Ct) must be connected between CTC and RCTC and an external resistor (Rt) must be connected between RTC and RCTC. A high level on the ASTABLE input enables astable operation. The period of the square wave at O and O outputs is a function of the external components employed. True input pulses on the ASTABLE or complement pulses on the ASTABLE input, allows the circuit to be used as a gatable multivibrator. The oscillator output period is half of the O output in the astable mode. However, a 50% duty factor is not guaranteed at this output.

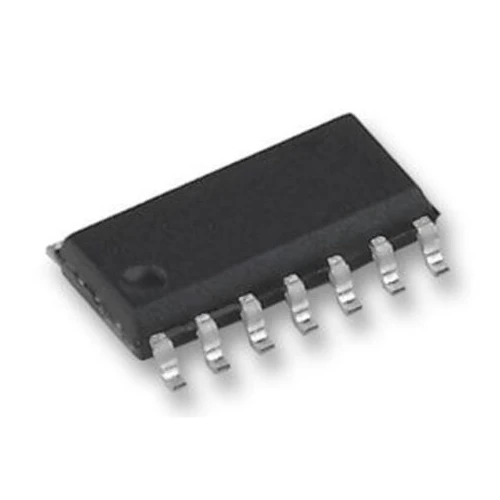

Note: Images for reference only.

Specifications:

Logic Family / Base Number:: HEF4047
Multivibrator Type:: Monostable / Astable
Output Current:: 2.4mA
Supply Voltage Max:: 15.5V
Logic Case Style:: SOIC
No. of Pins:: 14Pins
Propagation Delay:: 50ns
Logic IC Family:: HEF4000
Logic IC Base Number:: 4047

For detailed specifications, please refer to datasheet in Attachments.

Specifications:

Propagation Delay	50ns
Logic Case Style	SOIC
No. of Pins	14
Logic IC Base Number	4047
Max. Output Current (Amp)	2.4mA
Max. Supply Voltage (V)	15.5V
Logic IC Family	HEF4000
Logic Family / Base Number	HEF4047
Multivibrator Type	Monostable / Astable
Shipping Weight	0.01 kg
Shipping Dimensions	4 × 4 × 1 cm
