HFS-DC06 5.8G DC5V Microwave Motion Sensor Module for LED Lighting Doppler Effec

(0) 0 Reviews 0 Orders 0 Wish listed

₹574.00

Quantity :

Total price :

(Tax : )

Overview
Reviews

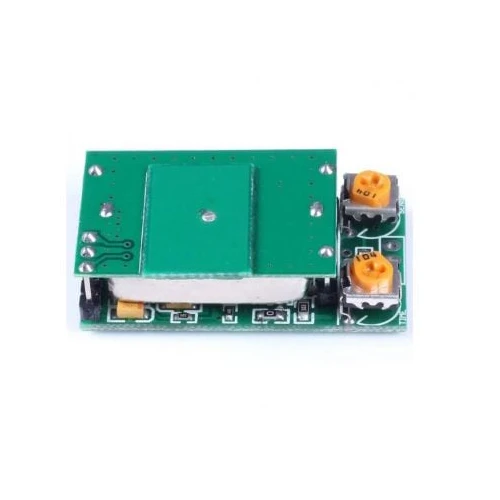

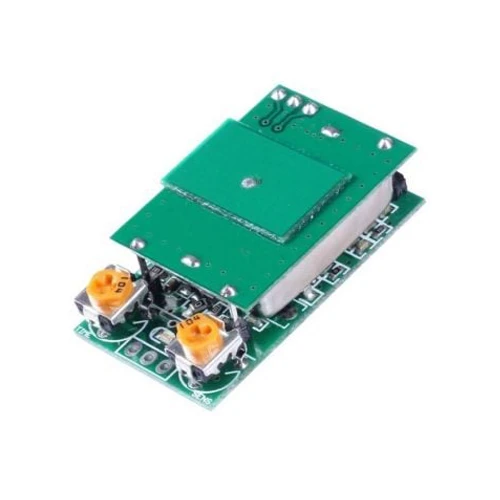

This is HFS-DC06 5.8G DC5V Microwave Motion Sensor Module for LED Lighting Doppler Effect.

These Radar sensors are used for detecting, locating, tracking, and recognizing objects of various kinds at considerable distances. It operates by transmitting electromagnetic energy toward objects, commonly referred to as targets, and observing the echoes returned from them. The module has a range of up 4 meters and only requires stable 5V to be powered. The user may vary the orientation of the module to get the best coverage.

Applications:

Intruder alarms
Occupancy Modules
Object Detection

Precautions:

The supply current should be greater than 30mA to drive the module, the voltage should be stable and can not have large fluctuations, otherwise, it will trigger a continuous trigger (load lamp may continuous self-trigger or not extinguished)
The product should not be installed next to a large area of the metal body, can not be placed in a fully enclosed metal shell, which will affect the performance of this product or can not be used normally

Note:

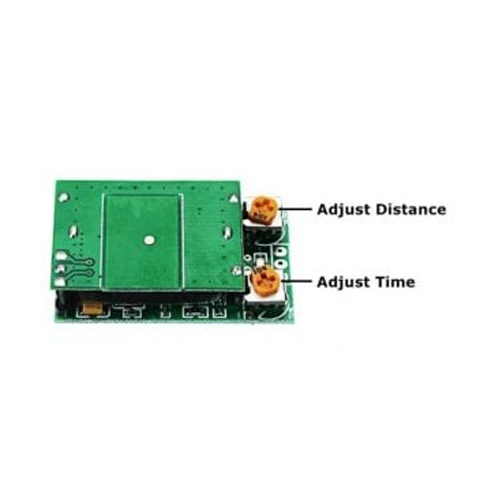

To increase the range, sensitivity and time turn the preset clockwise, and to reduce turn it anti-clockwise.
The guaranteed sensing range is 4m, we have tested this sensor and found it working up to 20m having the right conditions.

Features:

Easy to use
Easy to install
Good quality Product

Specifications:

Voltage Rating (V):	5
Model No.:	HFS DC06
ISM band	Waveband
Frequency (GHz):	5.8GHz
Input current (mA)	22 .4
Output Type	High-level signal
Sensing Distance	4 m
Sensing Angle	180 degrees.
Shipping Weight	0.02 kg
Shipping Dimensions	9 × 5 × 1 cm
