If you want to build a device that is used to detect sense motion and almost always used to detect whether a human has moved in or out of the sensors range. Then this Sensor is needed for you. you can buy this sensor from Robu.in at a reasonable price
The PIR Motion Sensor Detector Module HC SR501 allows you to sense motion. It is almost always used to detect the motion of a human body within the sensor’s range. It is often referred to using “PIR”, “Pyroelectric”, “Passive Infrared” and “IR Motion” sensors.

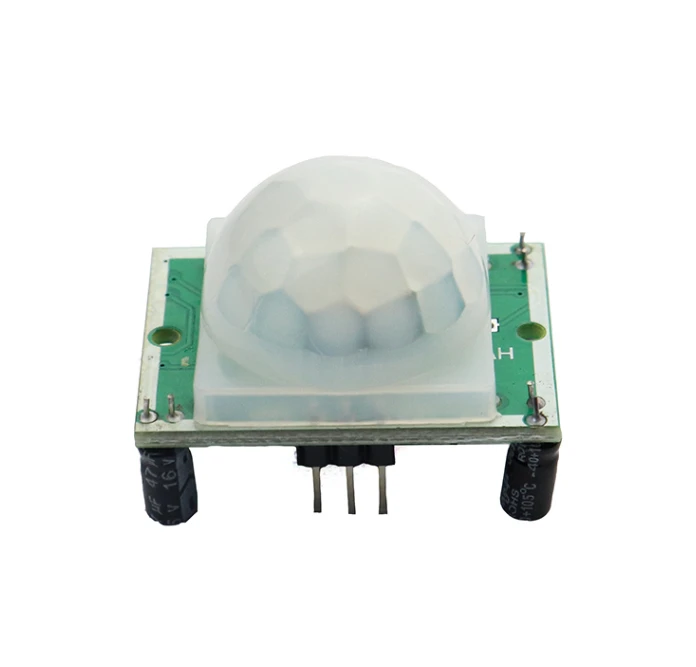

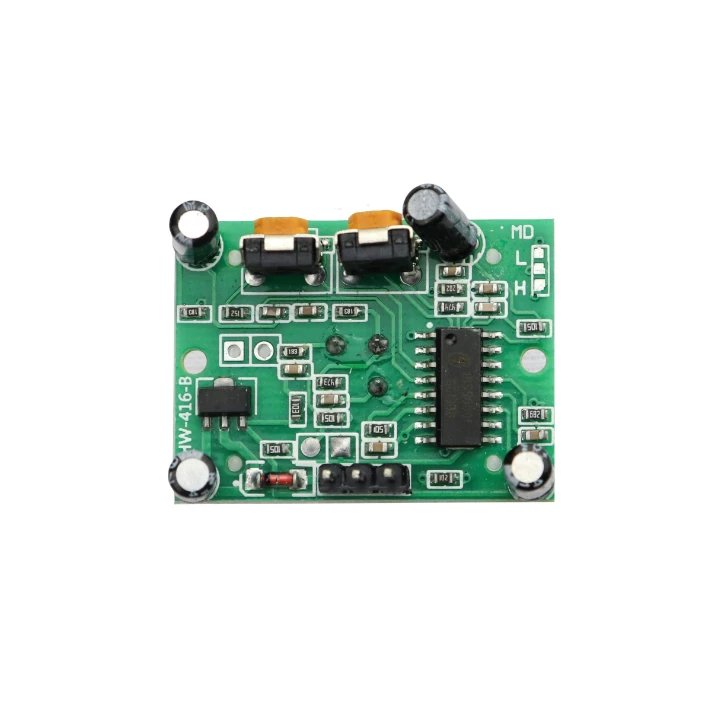

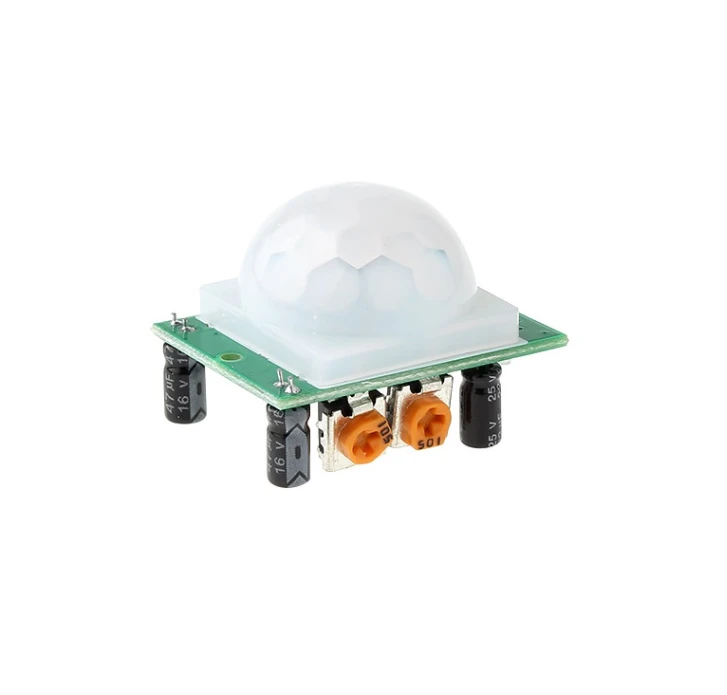

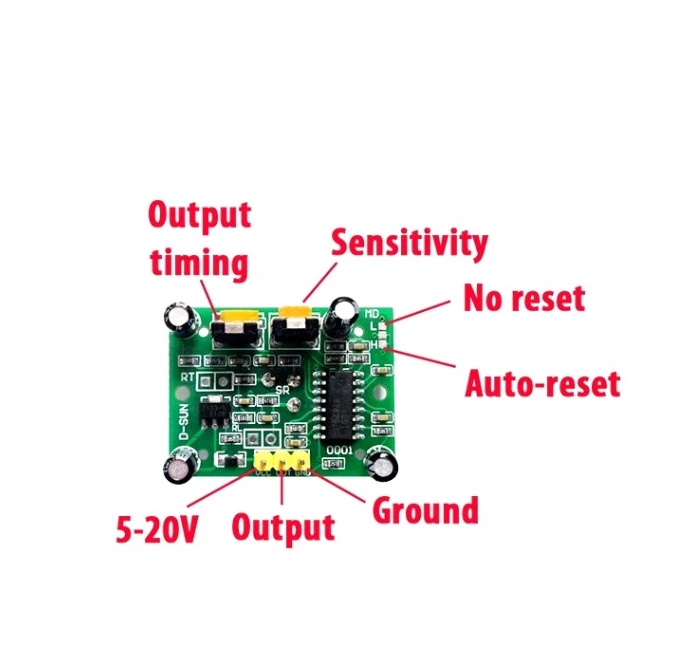

The module has an onboard pyroelectric sensor, conditioning circuitry, and a dome-shaped Fresnel lens. It has a delay time adjustment Potentiometer and sensitivity adjustment Potentiometer. Compatible with ARDUINO, RASPBERRY PI, AVR, PIC, 8051, etc.
To know more about how to interface PIR sensor with raspberry Pi Click here!
| Item Type: | Sensor |
|---|---|
| Model Type | Motion Sensor Module |
| Model No.: | HC SR501 |
| Operating Voltage (V) | 4.5 to 20 |
| Avg. Current Used (mA): | 0.06 |
| Distance Measure (cm): | 300 ~ 700 |
| Output Type | (High/ Low-level Signal) 3.3V TTL output |
| Dimensions (L x W x H) mm | 32 x 24 x 18 |
| Weight (g): | 10 |
| Operating Temperature (°C) | -20 to 80 |
| Detection Angle | <140° |
| Delay Time | 5 to 200s (Can be Adjusted, Default 5s +/- 3%) |
| Shipping Weight | 0.015 kg |
| Shipping Dimensions | 4 × 3 × 1 cm |
