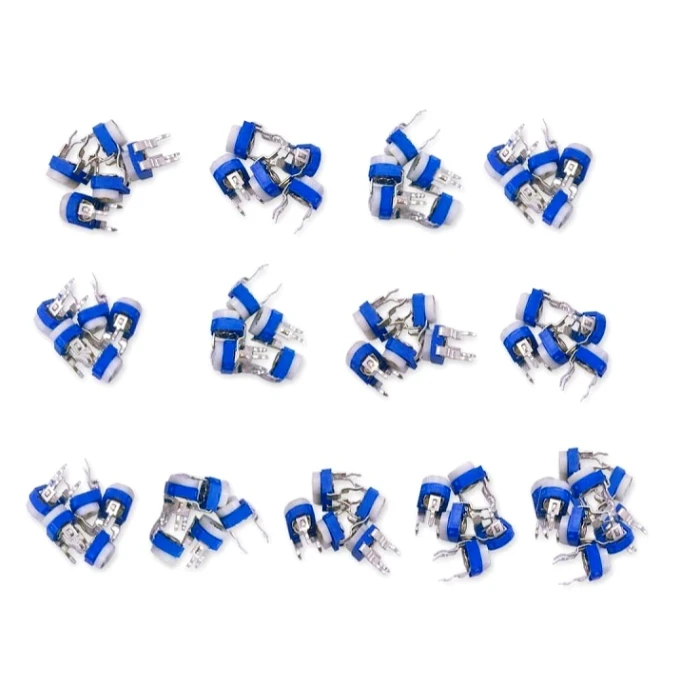

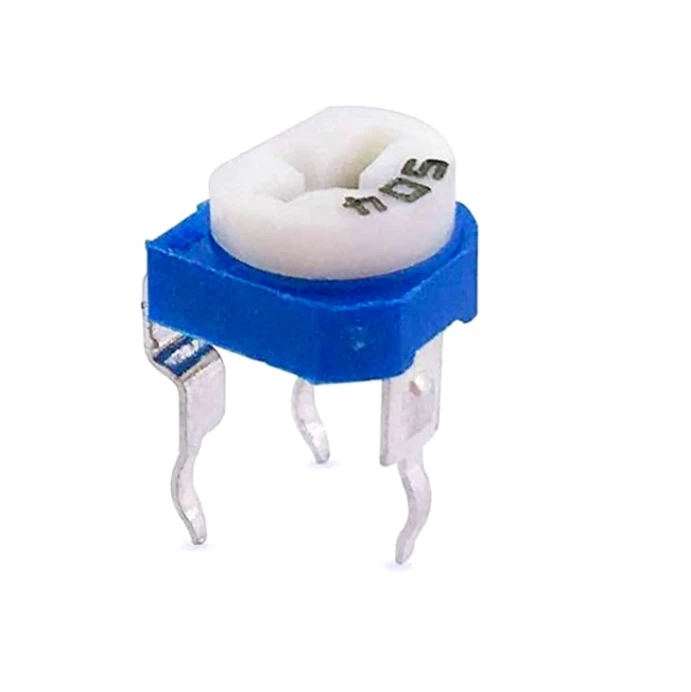

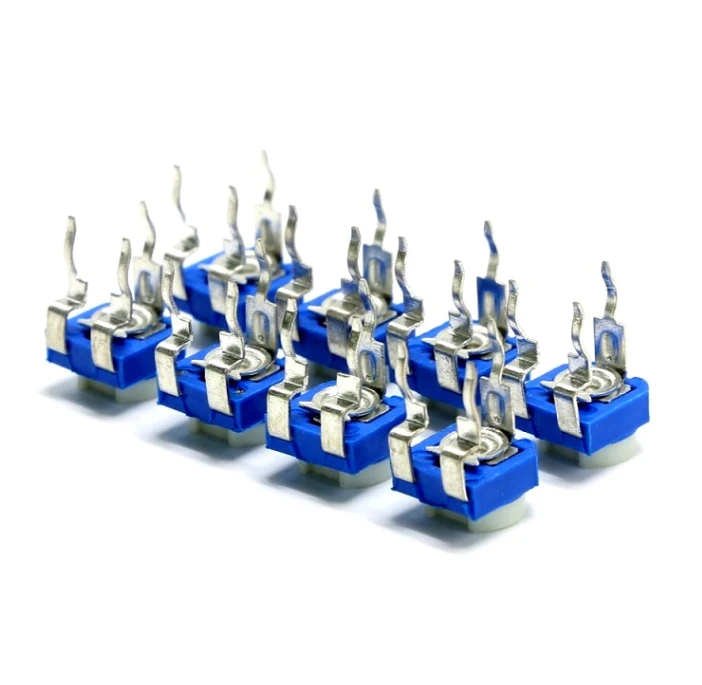

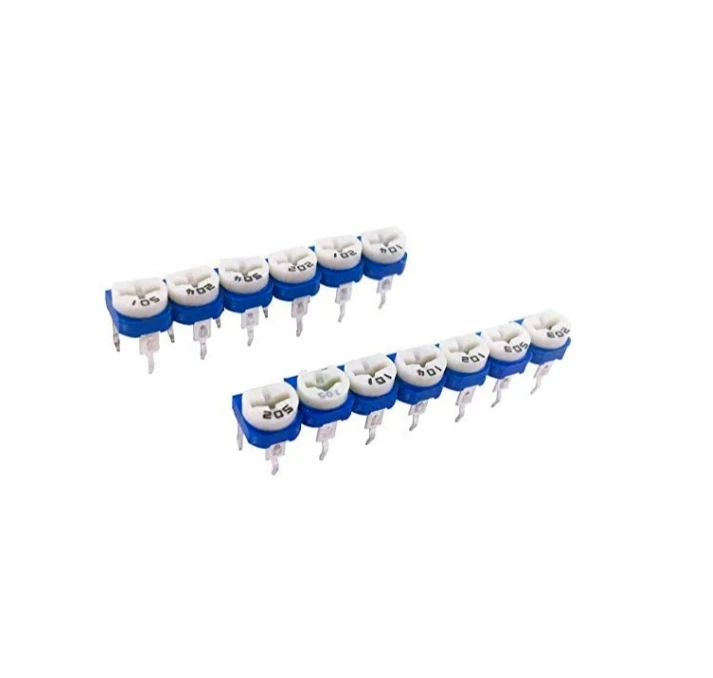

RM-065 Trimming Potentiometer Assorted Kit consists of 65pcs pots with 13 (5-qty. for each value) different and uniques ohm values. It is a three-terminal variable resistor that is used to vary or change the resistance. It is normally used to control any device’s resistance input value.
The potentiometer is easy to mount on a PCB and can be adjusted using a screwdriver.
| Model | RM-065 |
|---|---|
| Tolerance(%) | 30 |
| Operating Temperature Range | -10℃ to +70℃ |
| Mounting Type | Through Hole |
| Length (mm) | 7 |
| Width (mm) | 6.5 |
| Height (mm) | 5 |
| Weight (gm) | 0.1 (approx) (each) |
| Shipping Weight | 0.02 kg |
| Shipping Dimensions | 5 × 4 × 2 cm |
1 x RM-065 Trimming Potentiometer Assorted Kit – 13 Type
Kit Includes:
100Ω—-(101)—-5Pcs
200Ω—-(200)—-5Pcs
500Ω—-(501)—–5Pcs
1KΩ——(102)—–5Pcs
2KΩ—–(202)—–5Pcs
5KΩ—–(502)—–5Pcs
10KΩ—-(103)—–5Pcs
50KΩ—-(503)—–5Pcs
20kΩ—-(203)—–5Pcs
100KΩ—(104)—–5Pcs
200KΩ—(204)—-5Pcs
500KΩ—(504)—-5Pcs
1MΩ—–(105)—–5Pcs
