Model:TMP117
Operating Temperature (°C):’-55 to 150
Interface:I2C
Length (mm):25.4

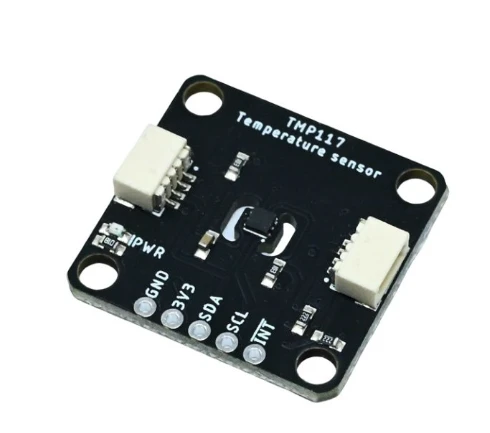

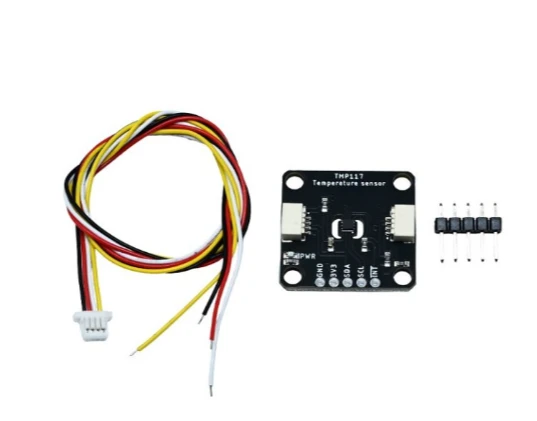

The SmartElex TMP117 breakout is a high-precision temperature sensor equipped with an I2C interface. It outputs temperature readings with high precision of 0.1ºC across the temperature range of -20ºC to +50ºCs with no calibration and a maximum range from -55ºC to 150ºC. The SmartElex High Precision Temperature Sensor also has a very low power consumption rate which minimizes the impact of self-heating on measurement accuracy. No soldering is required to connect it to the rest of your system. However, we still have broken out 0.1″-spaced pins in case you prefer to use a breadboard.
The SmartElex High Precision Temperature Sensor also includes programmable temperature limits and digital offset for system correction. While the TMP102 is capable of reading temperatures to a resolution of 0.0625ºC and is accurate up to 0.5ºC, the on-board TMP117 is not only more precise but has a 16-bit resolution of 0.0078ºC
