E18 series is a 2.4GHz frequency band ZigBee communication protocol-to-serial wireless module designed and produced by Ebyte. The factory comes with self-organizing network firmware, ready to use, suitable for a variety of application scenarios (especially smart home).
The E18 series module adopts CC2530 RF chip imported from Texas Instruments. The chip integrates 8051 single-chip microcomputer and wireless transceiver. Some module models have built-in PA power amplifier to increase the communication distance. The factory-built firmware implements serial data transparent transmission based on the ZigBee3.0 protocol, and supports various commands under the ZigBee3.0 protocol. After actual measurement, it has very good compatibility with most ZigBee3.0 products on the market.
Specifications:
| Supported protocols | ZigBee3.0 |
|---|---|
| Operating Voltage (V) | 2.5 ~ 3.6V |
| Operating Temperature (°C) | -40 ~ +85℃ |
| Communication Interface | UART |
| Antenna Interface | IPEX-1 |
| Shipping Weight | 0.03 kg |
| Shipping Dimensions | 10 × 5 × 2 cm |

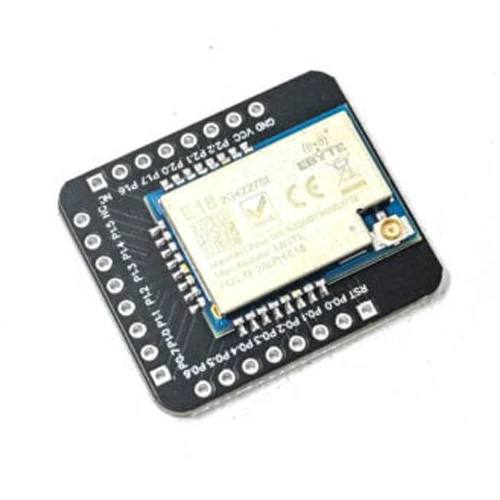

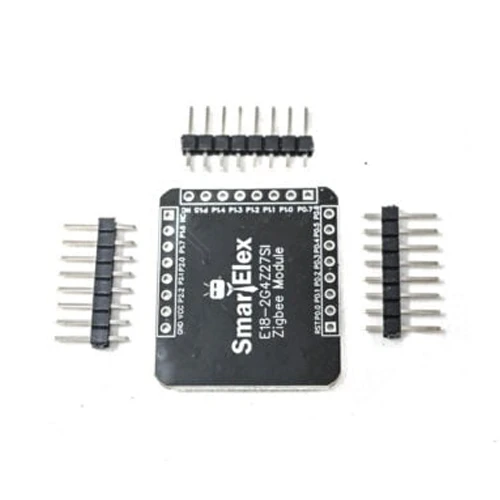

1 x SmartElex E18-2G4Z27SI 2.4GHz ZigBee Breakout Board
1 x UFL Antenna
3 x Male Headers
