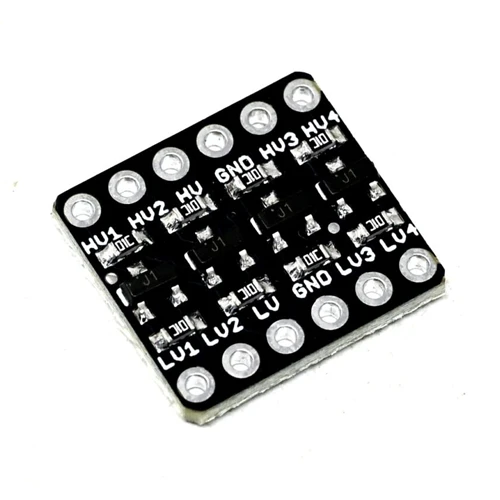

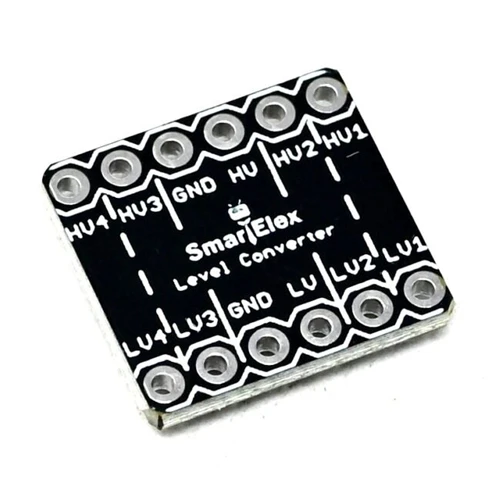

The SmartElex Bi-Directional Logic Level Converter is designed for effortless communication between devices operating at different voltage levels. Powering this board is simple: connect your high voltage source (like 5V) to the ‘HV’ pin, your low voltage source (such as 3.3V) to the ‘LV’ pin, and ground your system to the ‘GND’ pin.
Connecting a 3.3V device to a 5V system can often pose challenges, but the SmartElex Logic Level Converter simplifies this process. This compact device safely steps down 5V signals to 3.3V while simultaneously stepping up 3.3V signals to 5V. It also supports devices operating at 2.8V and 1.8V, making it versatile for various applications.
What sets this logic level converter apart is its ability to handle both high and low voltage levels on the same channel, ensuring safe and efficient signal translation. Each converter features four high-side pins and four low-side pins, with two inputs and two outputs for each side, allowing for seamless integration into your projects.
Make your multi-voltage connections hassle-free with the SmartElex Bi-Directional Logic Level Converter!
Specifications:
| Shipping Weight | 0.01 kg |
|---|---|
| Shipping Dimensions | 5 × 5 × 2 cm |

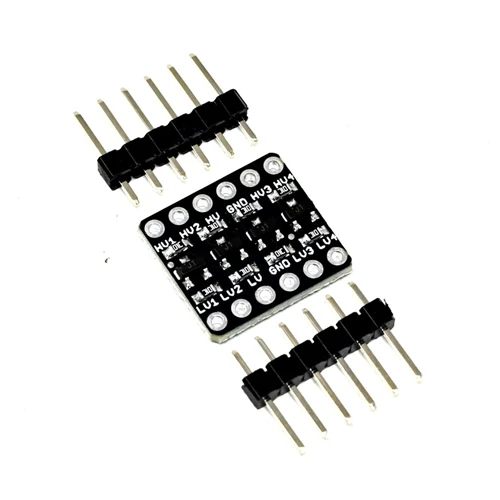

1 x SmartElex Logic Level Converter – Bi-Directional
1 x Header Pin Set.
