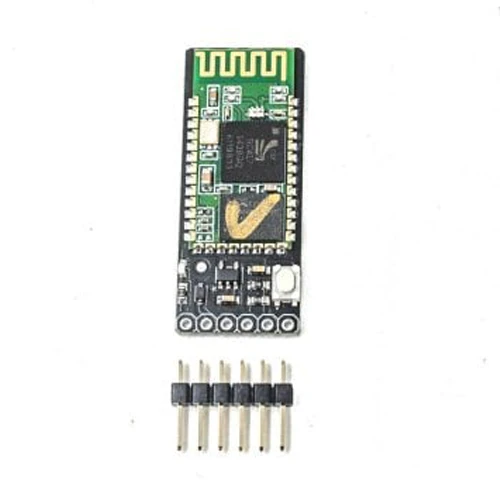

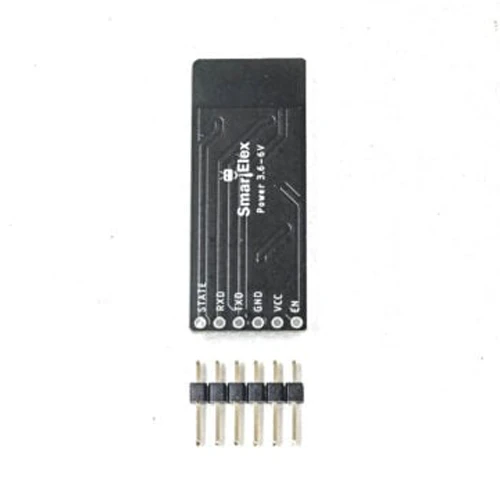

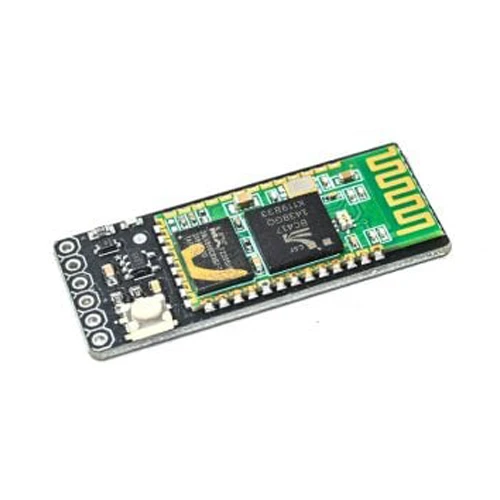

SmartElex HC-05 6 Pin Wireless Serial Bluetooth Module is a Bluetooth module for use with any microcontroller. It uses the UART protocol to make it easy to send and receive data wirelessly.
The SmartElex HC-06 module is a slave only device. This means that it can connect to most phones and computers with Bluetooth but it cannot connect to another slave-only device such as keyboards and other HC-06 modules. To connect with other slave devices a master module would be necessary such as the HC-05 version which can do both master and slave.
Specifications:
| Item Type: | HC Series Module |
|---|---|
| Voltage Rating (VDC): | 3.6 to 6 |
| Switch/Button | Yes |
| Input Supply Voltage (V) | 3.6 ~ 6 |
| Input current (mA) | 50 |
| Max. Operating Range (m): | 10 |
| Operating Frequency (Hz): | 2.4GHz ISM band |
| Modulation Type | GFSK (Gaussian Frequency Shift Keying) |
| Emission power | 4dBm, Class 2 |
| Sensitivity (dBm) | -84dBm at 0.1% BER |
| Length (mm): | 43 |
| Width (mm): | 16.5 |
| Height (mm): | 7 |
| Weight (g): | 5 |
| Shipping Weight | 0.03 kg |
| Shipping Dimensions | 10 × 5 × 2 cm |
1 x SmartElex HC-05 6 pin Bluetooth Module – 1 PCS
