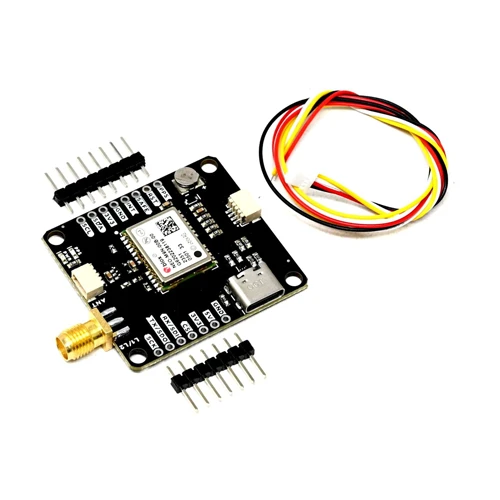

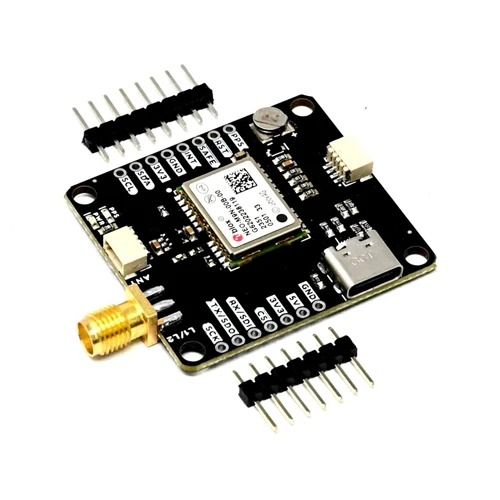

The SmartElex NEO-M9N GPS Breakout is a high quality GPS board with equally impressive configuration options including SMA. The NEO-M9N module is a 92-channel u-blox M9 engine GNSS receiver, meaning it can receive signals from the GPS, GLONASS, Galileo, and BeiDou constellations with ~1.5 meter accuracy. This breakout supports concurrent reception of four GNSS. This maximizes position accuracy in challenging conditions increasing, precision and decreases lock time; and thanks to the onboard rechargeable battery, you’ll have backup power enabling the GPS to get a hot lock within seconds! Additionally, this u-blox receiver supports I2C (u-blox calls this Display Data Channel). We have broken out 0.1″-spaced pins in case you prefer to use a breadboard.
The NEO-M9N module detects jamming and spoofing events and can report them to the host, so that the system can react to such events. A SAW (Surface Acoustic Wave) filter combined with an LNA (Low Noise Amplifier) in the RF path is integrated into the module which allows normal operation even under strong RF interferences.
U-blox based GPS products are configurable using the popular, but dense, windows program called u-center. Plenty of different functions can be configured on the NEO-M9N: baud rates, update rates, geofencing, spoofing detection, external interrupts, SBAS/D-GPS, etc.
This SmartElex GPS Breakout is also equipped with an on-board rechargeable battery that provides power to the RTC. This reduces the time-to-first fix from a cold start (~24s) to a hot start (~2s). The battery will maintain RTC and GNSS orbit data without being connected to power for plenty of time.
Specifications:
| Maximum Altitude (m) | 80,000m |
|---|---|
| Max Velocity | 500m/s |
| Velocity Accuracy | 0.05m/s |
| Heading accuracy | 0.3 degrees |
| Time Pulse Accuracy | 30ns |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 5 × 5 × 3 cm |
1 x SmartElex GPS Breakout – NEO M9N, SMA
1 x Berg Pins and Connecting Cable
