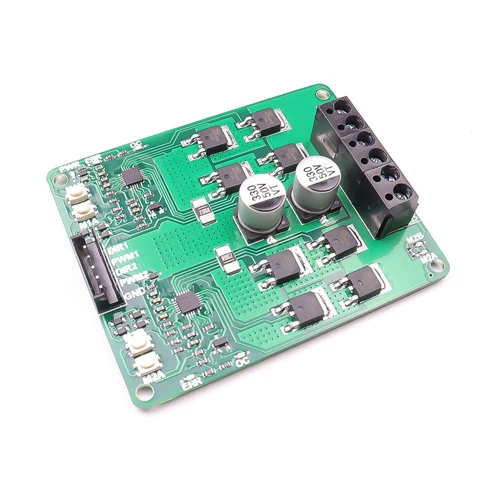

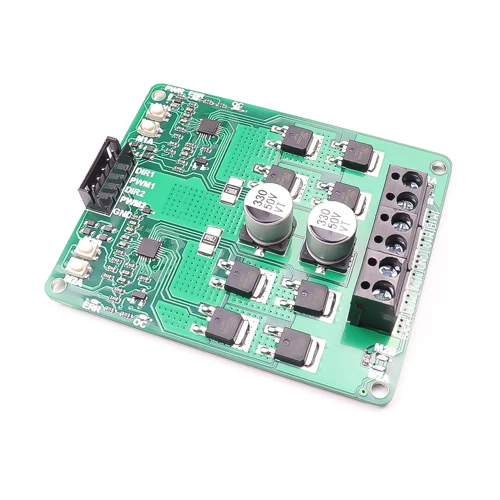

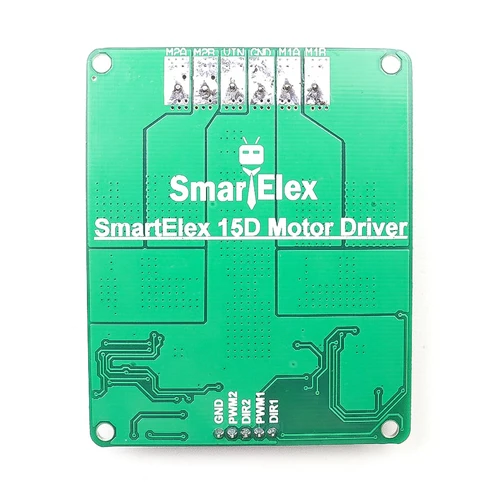

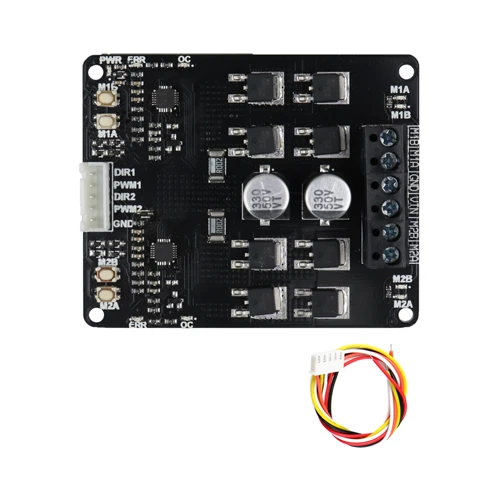

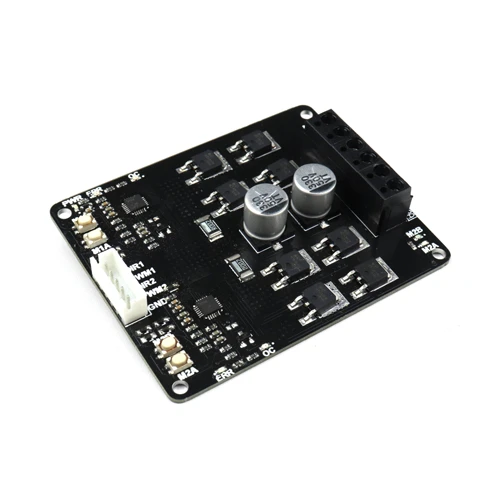

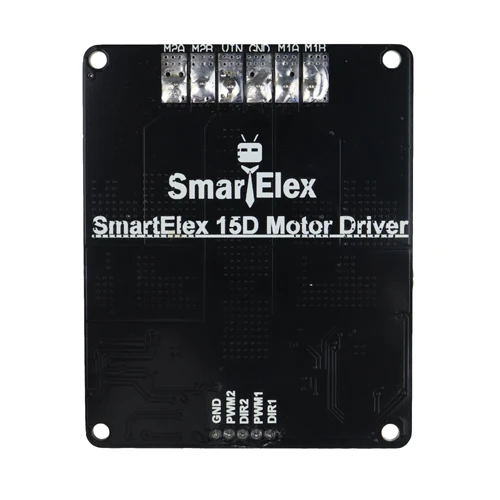

Brush DC motors are the most widely used drivers due to their low cost and simple drive control options. SmartElex 15D Dual Channel DC Motor Driver is powerful motor driver board. This motor driver has a lot of great specs that make it useful for a wide variety of mechatronics.
The wide operating voltage range and easy to interface with microcontrollers (MCU) allows you to quickly adopt this module into applications.
Note: Colour of the product & cable may vary based on availability.
To know more about the motor driver, refer to this article. How to operate the SmartElex Motor Driver in RC Mode
Specifications:
| Driver Model | SmartElex 15D |
|---|---|
| Operating Voltage (VDC) | 6.8 ~ 30 |
| Peak Current (A) | 30 |
| Continuous Current (A): | 13 |
| No. of Channels: | 2 |
| Over-Current Protection (A) | Yes |
| Thermal Protection (Y/N) | Yes |
| LED Indicator (Y/N) | Yes |
| Cooling Fan | No |
| Arduino Shield (Y/N): | No- can be used with Wire connection |
| Dimensions (L x W x H) mm | 75 x 63 x 15 |
| Weight (g): | 30 |
| Shipping Weight | 0.033 kg |
| Shipping Dimensions | 6 × 4 × 1 cm |
1 x SmartElex 15D Dual Channel DC Motor Driver
1 x Connection Cable.
