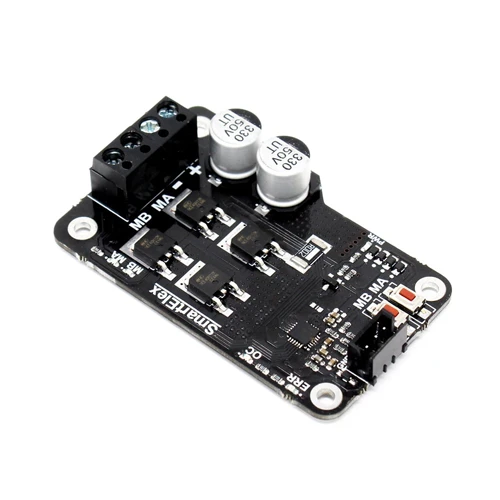

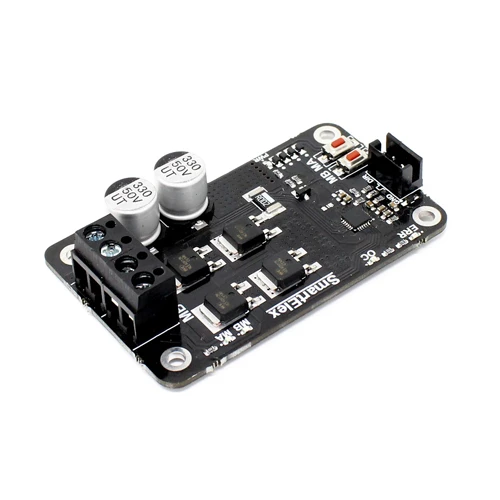

Brush DC motors are the most widely used drivers due to their low cost and simple drive control options. SmartElex 15S DC Motor Driver is powerful motor driver board. This motor driver has a lot of great specs that make it useful for a wide variety of mechatronics.

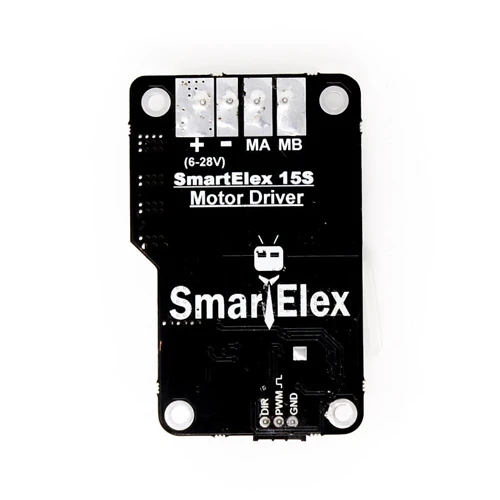

The wide operating voltage range and easy to interface with microcontrollers (MCU) allow you to quickly adopt this module into applications. The pin map is as given below. To know more about this motor driver, please refer to the user manual in the attachment section.
Note: This product is also available in green colors, which will be shipped randomly.
Some basic information about motor drivers, their controlling modes, and a comparison table is provided in this article. Click here to read.
Specifications:
| Supply Voltage | 6.8-30 VDC. |
|---|---|
| Continuous Current: | 15 Amp. |
| PWM Frequency | 20 KHz. |
| Max Peak current | 30 Amp(For 10 Seconds). |
| Dimensions (LxWxH) | 67 x 43 x 15 mm |
| Weight (g) | 24 |
| Shipping Weight | 0.027 kg |
| Shipping Dimensions | 8 × 5 × 4 cm |

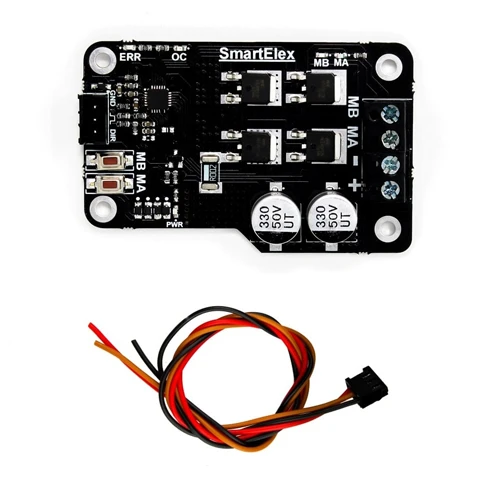

1 xSmartElex 15S DC Motor Driver 15A (30A Peak)
1 x Connection Cable.
