SmartElex USB Type A Female Breakout Module

(0) 0 Reviews 0 Orders 0 Wish listed

₹49.00

Quantity :

Total price :

(Tax : )

Overview
Reviews

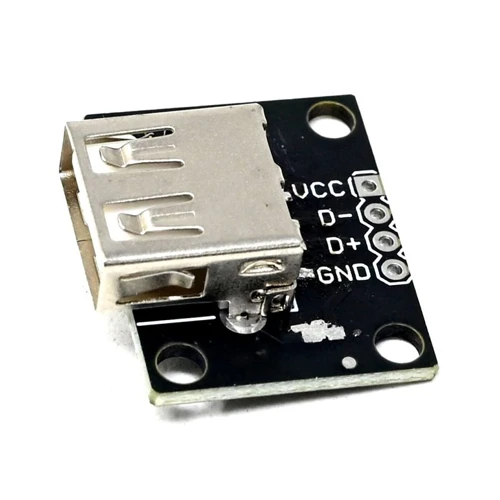

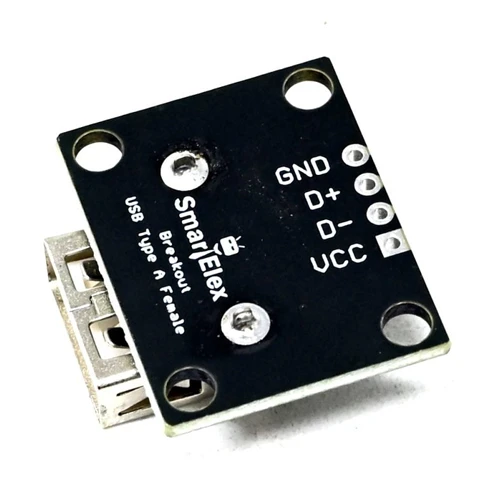

This compact breakout board provides easy access to the VCC, GND, D-, and D+ pins of a female USB Type A connector, routing them to a standard 0.1″ pitch header for convenient use.

Features:

Female USB Type A Connector: Designed to easily interface with USB Type A cables and devices.
Pin Access: Breaks out VCC, GND, D-, and D+ pins for straightforward connectivity.
0.1″ Pitch Header: Standardized header pitch allows for easy integration with breadboards and perfboards.
Compact Design: Small form factor makes it suitable for a variety of projects without occupying excessive space.
Prototyping Friendly: Ideal for custom wiring and prototyping applications, simplifying USB connectivity in electronic projects.
Durable Construction: Built with high-quality materials to ensure longevity and reliability in various applications.

Specifications:

Connector Type: Female USB Type A
Pinout:
1. VCC (Power): +5V
2. D+ (Data positive)
3. D- (Data negative)
4. GND (Ground)
Header Pitch: 0.1″ (2.54mm)
Board Dimensions: Approximately 15mm x 12mm (size may vary slightly depending on the manufacturer)
Voltage Rating: 5V (standard USB voltage)
Current Rating: Up to 1.8A (depending on component quality)
Material: PCB with gold-plated contacts for improved conductivity and durability
Mounting Style: Through-hole design for easy soldering
Compatibility: Works with USB 2.0 and compatible devices
Weight: Lightweight, typically just a few grams
